ArtTk is a Java/Swing based library offering an extensive toolkit for scientific and technical applications. ArtTk provides a set of widgets and functional modules like:

A set of helper classes allowing a dynamical definition of menu and toolbar from a simple XML-based descriptor, supporting text contents, tooltips, icons, action commands, etc…
A versatile and extensible multi-desktop component;
An extended Grid layout to simplify the development of advanced scientific applications;
A set of scientific and technical widgets like:

A dynamical memory footprint monitor;
Simple key-values based fields editors;
A versatile color gradient editor
…

ArtTk has been made as light as possible in order to provide an efficient and simple solution for scientific and technical applications. ArtTk is used in several open-source and commercial projects like:

SPIS
Keridwen
Cassandra
BMGTools
…

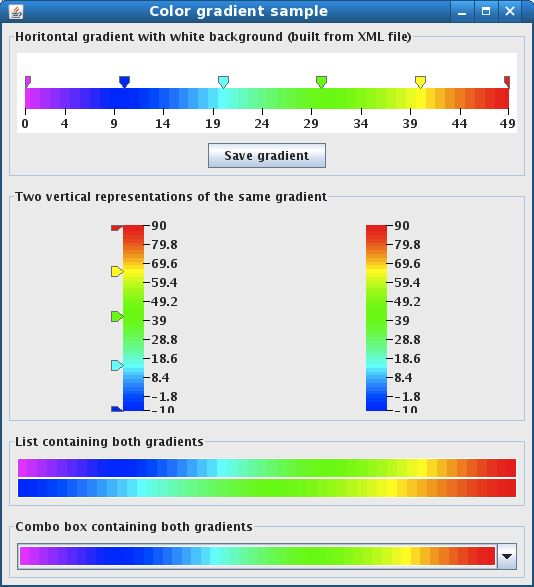

Color gradient examples

In the example above, the color gradient at the top is directly read from the XML file below:

<?xml version="1.0" encoding="UTF-8"?>
<Gradient startColor="#ff00ff" endColor="#ff0000" nbColors="50">
    <Color position="10" code="#0000ff" />
    <Color position="20" code="#00ffff" />
    <Color position="30" code="#00ff00" />
    <Color position="40" code="#ffff00" />
</Gradient>

GridBagPanel layout examples

A GridBagPanel is a JPanel that implements methods facilitating the use of Swing GridBagLayout.

A HBox is a panel containing horizontally aligned components :

GridBagPanel panel = new GridBagPanel.Builder("HBox").build(PanelType.HBOX);
panel.addComponent(label1);
panel.addComponent(button1);
panel.addComponent(button2);

A VBox is a panel containing vertically aligned components :

GridBagPanel panel = new GridBagPanel.Builder("VBox").build(PanelType.VBOX);
panel.addComponent(label1);
panel.addComponent(button1);
panel.addComponent(button2);

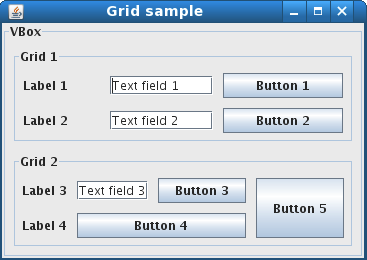

A Grid is a panel containing components placed in a grid.

There are several ways to create a grid. The basic grid displayed at the top of the figure below could be built either by explicitly defining the component positions on the grid:

GridBagPanel grid1 = new GridBagPanel.Builder("Grid 1").build(PanelType.GRID);// First line
grid1.position(0, 0).addComponent(label1);
grid1.position(1, 0).addComponent(textField1);
grid1.position(2, 0).addComponent(button1);
// Second line
grid1.position(0, 1).addComponent(label2);
grid1.position(1, 1).addComponent(textField2);
grid1.position(2, 1).addComponent(button2);

or by implicit construction (line by line):

GridBagPanel grid1 = new GridBagPanel.Builder("Grid 1").build(PanelType.GRID);// First line
grid1.addComponent(label1);
grid1.addComponent(textField1);
grid1.addComponent(button1).newLine();
// Second line
grid1.addComponent(label2);
grid1.addComponent(textField2);
grid1.addComponent(button2);

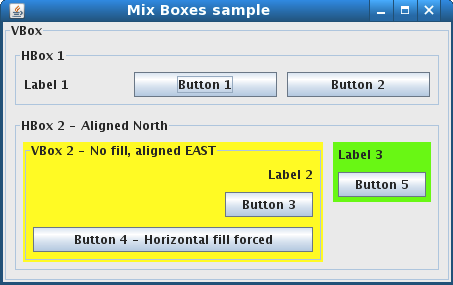

Of course, you can mix HBox , VBox and Grid components to obtain complex layouts:

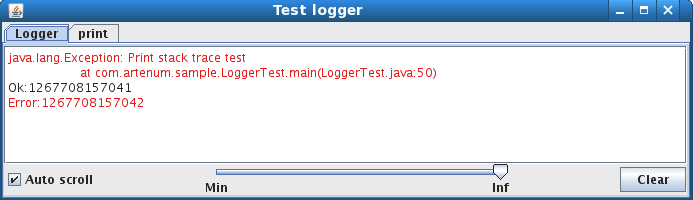

Logger example

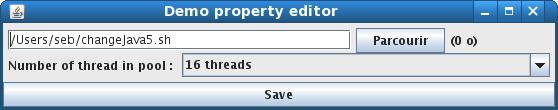

Properties editor example

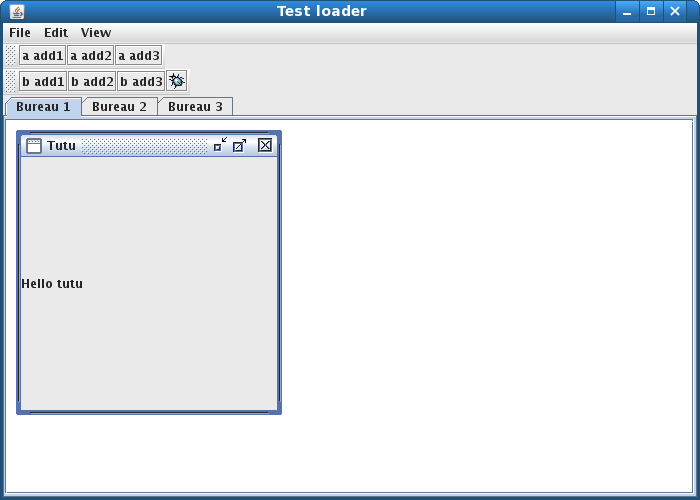

Multi-desktop example

The Java source file

public class GeneralSample {
    public static void main(String[] args) throws Exception {
        // Frame initialisation        JPanel toolBar = new JPanel();
        toolBar.setLayout(new BoxLayout(toolBar, BoxLayout.PAGE_AXIS));
        JFrame f = new JFrame("Test loader");
        f.getContentPane().setLayout(new BorderLayout());
        f.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);
        f.getContentPane().add(BorderLayout.NORTH, toolBar);
        // Sample of GUILoader usage
        GUILoader loader = new GUILoader();
        loader.addActionListener(new PrintActionListener());
        loader.load(GUILoader.class.getResource("/com/artenum/sample/Sample.xml").openStream());
        // Add builded components in UI
        f.setJMenuBar((JMenuBar) loader.getBuildedObject("menuBar"));
        JToolBar bar = (JToolBar) loader.getBuildedObject("toolBar1");
        bar.setAlignmentX(JPanel.LEFT_ALIGNMENT);
        toolBar.add(bar);
        bar = ((JToolBar) loader.getBuildedObject("toolBar2"));
        bar.setAlignmentX(JPanel.LEFT_ALIGNMENT);
        toolBar.add(bar);
        // Sample of desktop manager
        DesktopManager desktopManager = new DesktopManager();
        desktopManager.addDesktop("Bureau 1");
        desktopManager.addDesktop("Bureau 2");
        desktopManager.addDesktop("Bureau 3");
        // Add internal frame in multi-desktop
        JInternalFrame internalFrame = desktopManager.createMultiDesktopInternalFrame("Tutu", true, true, true, true);
        internalFrame.getContentPane().add(new JLabel("Hello tutu"));
        internalFrame.reshape(10, 10, 100, 100);
        internalFrame.setVisible(true);
        desktopManager.getCurrentDesktop().add(internalFrame);
        internalFrame = desktopManager.createMultiDesktopInternalFrame("Tata", true, true, true, true);
        internalFrame.getContentPane().add(new JLabel("Hello tata"));
        internalFrame.reshape(110, 10, 100, 100);
        internalFrame.setVisible(true);
        desktopManager.getDesktop(1).add(internalFrame);
        internalFrame = desktopManager.createMultiDesktopInternalFrame("Toto", true, true, true, true);
        internalFrame.getContentPane().add(new JLabel("Hello toto"));
        internalFrame.reshape(210, 10, 100, 100);
        internalFrame.setVisible(true);
        desktopManager.getDesktop("Bureau 3").add(internalFrame);
        f.getContentPane().add(BorderLayout.CENTER, desktopManager);
        // Finish the frame initialisation
        f.setSize(700, 500);
        f.setLocationRelativeTo(null);
        f.setVisible(true);
    }
}

The Xml file

<?xml version="1.0" ?>
<GuiLoader>
	<MenuBar className="javax.swing.JMenuBar" resultKeyName="menuBar" >
		<Menu className="javax.swing.JMenu" txtContent="File">
			<Item className="javax.swing.JMenuItem" actionCommand="aa" txtContent="a"/>
			<Item className="javax.swing.JMenuItem" actionCommand="bb" txtContent="b"/>
			<Item className="javax.swing.JMenuItem" actionCommand="cc" txtContent="c"/>
		</Menu>
		<Menu className="javax.swing.JMenu" txtContent="Edit">
			<Menu className="javax.swing.JMenu" txtContent="File">
				<Item className="javax.swing.JMenuItem" actionCommand="aa" txtContent="a"/>
				<Separation/>
				<Item className="javax.swing.JMenuItem" actionCommand="bb" txtContent="b"/>
				<Item className="javax.swing.JMenuItem" actionCommand="cc" txtContent="c"/>
			</Menu>
		</Menu>
		<Menu className="javax.swing.JMenu" txtContent="View"/>
	</MenuBar>
	<ToolBar className="javax.swing.JToolBar" resultKeyName="toolBar1" >
		<Button className="javax.swing.JButton" actionCommand="add1 command" txtContent="a add1"/>
		<Button className="javax.swing.JButton" actionCommand="add2 command" txtContent="a add2"/>
		<Button className="javax.swing.JButton" actionCommand="add3 command" txtContent="a add3"/>
	</ToolBar>
	<ToolBar className="javax.swing.JToolBar" resultKeyName="toolBar2" >
		<Button className="javax.swing.JButton" actionCommand="add1 command" txtContent="b add1"/>
		<Button className="javax.swing.JButton" actionCommand="add2 command" txtContent="b add2"/>
		<Button className="javax.swing.JButton" actionCommand="add3 command" txtContent="b add3"/>
		<Button className="javax.swing.JButton" actionCommand="FIXME" iconPath="/com/artenum/sample/conflict.gif" toolTip="Hello tooltip"/>
	</ToolBar>
</GuiLoader>
